Description
Parameters are based on standard configuration and are subject to change.
| Category | Specification |
|---|---|

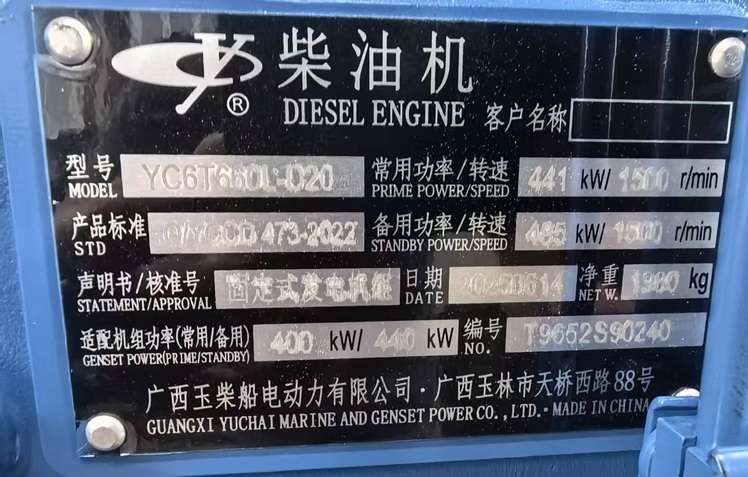

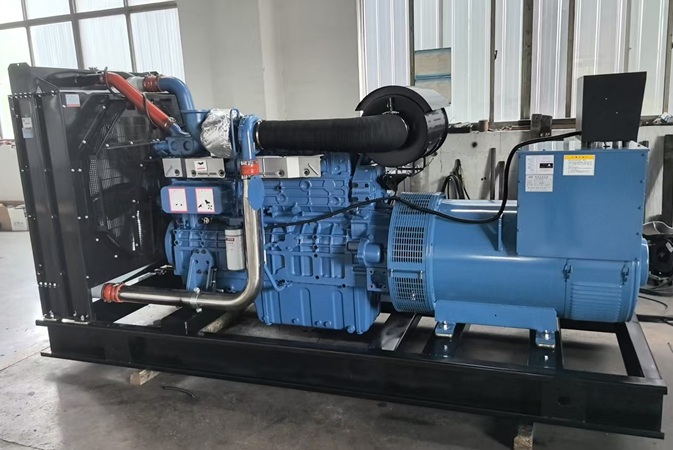

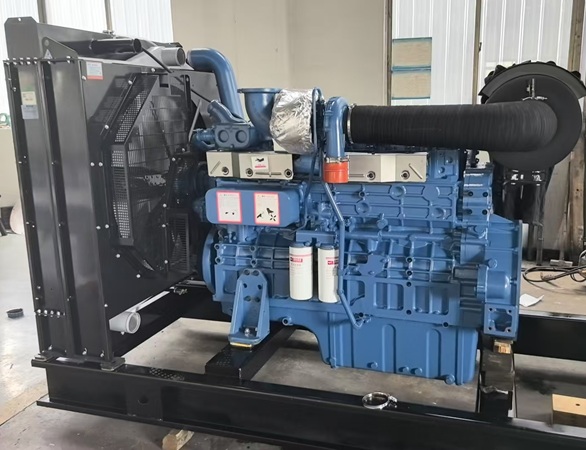

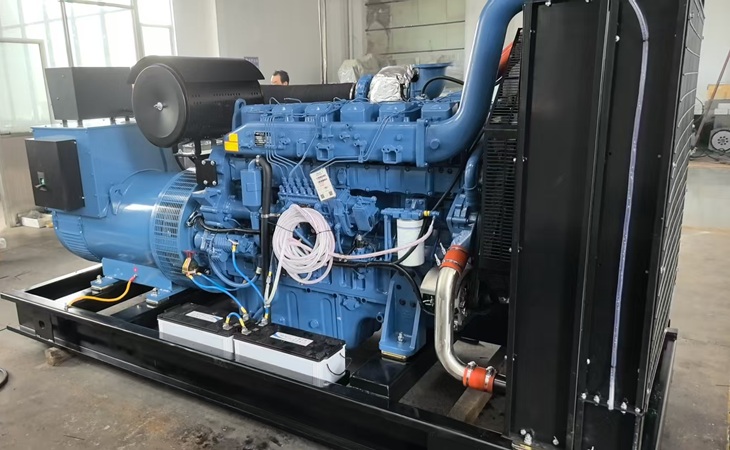

| Engine | Make/Model: Yuchai YC6T660L-D20 Type: 4-Stroke, In-line 6-Cylinder, Turbocharged, Air-to-Air Aftercooled Prime Power: 400 kW / 500 kVA (under standard conditions) Displacement: Approx. 15.3 L Fuel Consumption: ≤ 205 g/kWh (at full load) Cooling System: Closed Circuit Water-Cooled |
| Alternator | Make/Model: Wuxi Stamford (Corresponding 400kW Model) Type: Brushless Self-Excited, Class H Insulation Rated Output: 400 kW / 500 kVA Voltage: 400/230V (Customizable: 380V/220V, 415V/240V, etc.) Frequency: 50 Hz (Customizable: 60Hz) Protection Grade: IP23 Voltage Regulation: ≤ ±1.0% |
| Control System | Make/Model: Standard Deep Sea or ComAp Auto Control Module Functions: Auto Start/Stop, Real-Time Monitoring (Voltage, Current, Frequency, Water Temp, Oil Pressure, etc.), Fault Protection, Optional Remote Communication Interface |
| Performance | Steady State Frequency Regulation: ≤ ±0.5% Voltage Recovery Time: ≤ 1.5 sec (from load application) Telephone Harmonic Factor (THF): < 2% Sound Level (at 1m from set at full load): ≤ 95 dB(A) (Open Skid), Can be reduced to ≤ 75 dB(A) with Optional Silenced Canopy |
| Standard Features & Dimensions | Standard Fuel Tank: Capacity for 8 hours at full load Starting System: 24V DC Electric Start Base Frame: Heavy-Duty Integrated Steel Skid Overall Dimensions (Approx.): L×W×H = 3500×1300×1900 mm Dry Weight (Approx.): 4000 kg |
Available Options (These will affect the final price):
Silenced Canopy: Reduces noise to below 75 dB(A) for urban environments.
Automatic Transfer Switch (ATS): Enables fully automatic switching from utility power.
Remote Monitoring System: Monitor status via internet or mobile app.
Weatherproof Canopy / Mobile Trailer: For outdoor or mobile applications.
Need a Custom Configuration or Volume Pricing?
Click “Get Your Custom Quote” below. Our engineering team will provide a tailored solution and quotation within 24 hours.
