Description

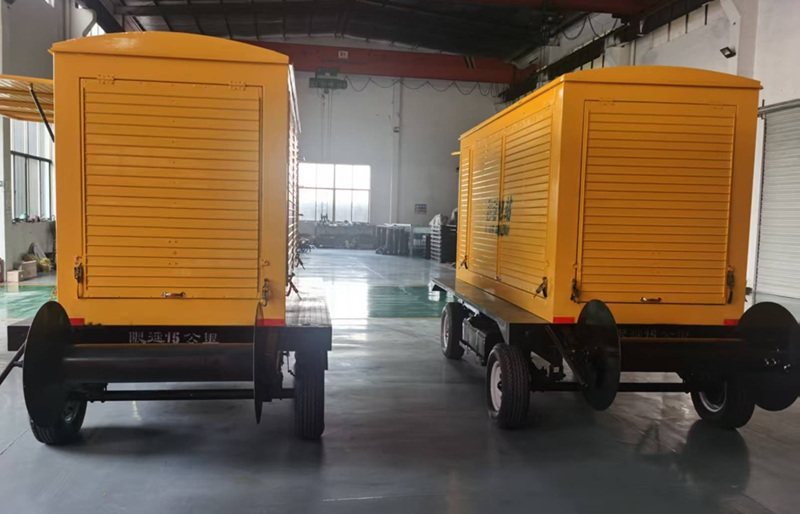

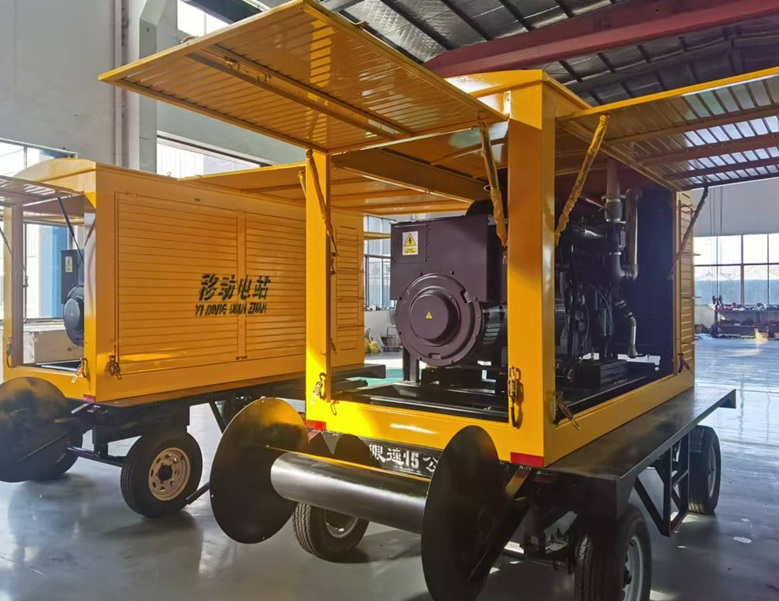

SDEC 250kW Mobile Trailer Diesel Generato-Technical Specifications
| Category | Specification |
|---|---|
| Prime Power Rating | 250 kW / 312.5 kVA (Standby power typically 275kW) |

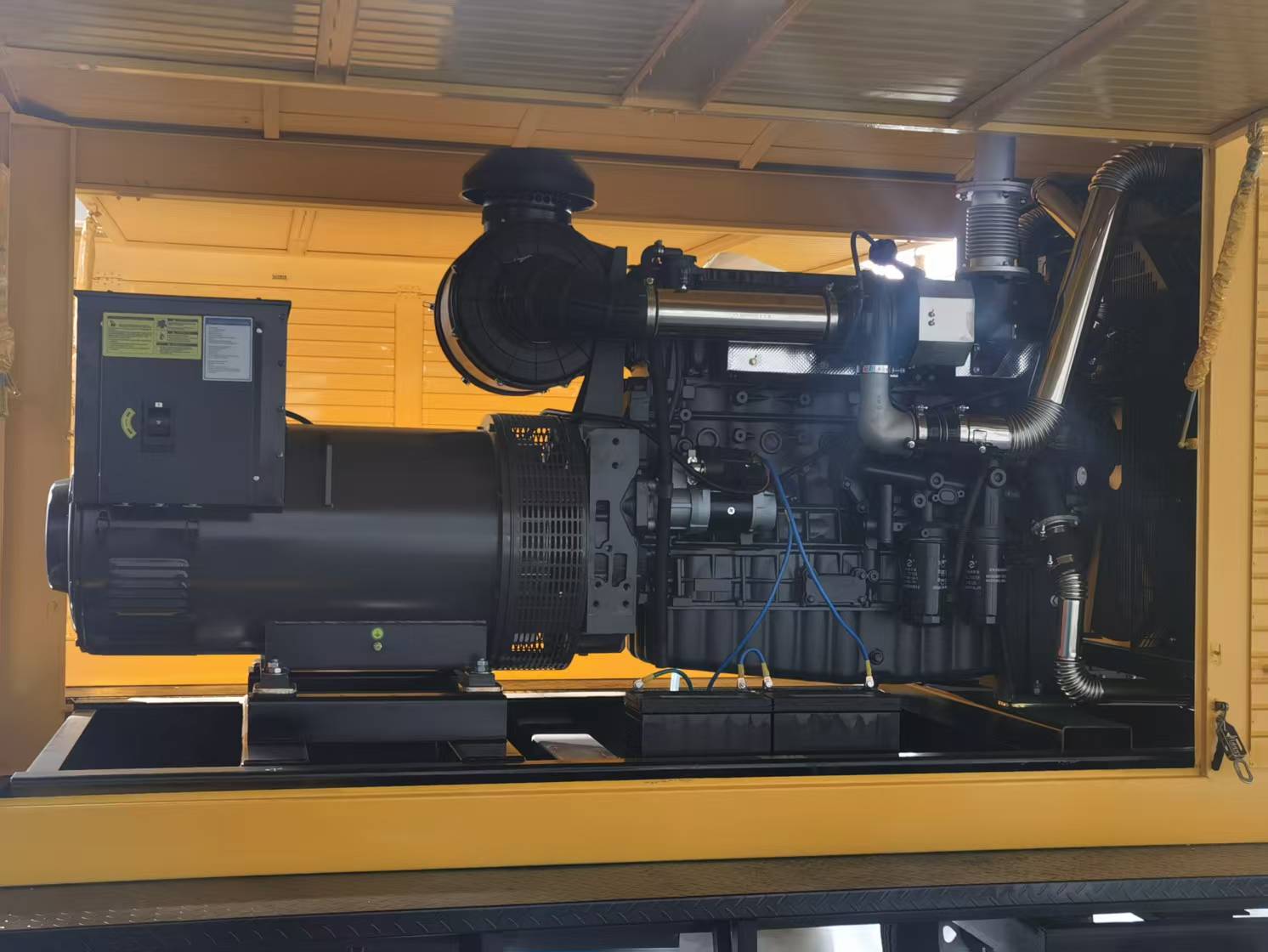

| Engine | Make/Model: Shangchai (SDEC) 6ETAA11.8-G32 Type: 6-Cylinder, Turbocharged, Aftercooled Displacement: 11.8 L Fuel Consumption: Approx. 210 g/kWh (at full load) |
| Alternator | Make/Model: Leroy-Somer (Corresponding 250kW Model) Type: Brushless, Self-Excited Voltage: 400/230V, 50Hz (Other voltages configurable) Protection Class: IP23, Insulation Class: H |

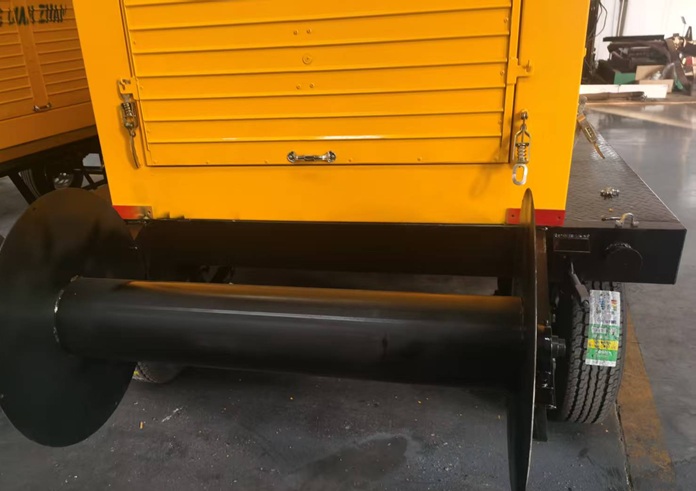

| Trailer Features | Chassis: Heavy-duty steel I-beam construction with standard tow hitch. Axles & Brakes: Tandem axles (2 axles) with leaf spring suspension and electric brakes. Tyres: Heavy-duty pneumatic tyres. Lighting: Full road lighting package (indicators, brake lights) compliant with transport regulations. Other: Toolbox, landing leg (jockey wheel), and cable storage. |
| Control System | Panel: Weatherproof canopy-mounted control panel. Standard: Auto start/stop, digital display for key parameters (voltage, frequency, hours, etc.), and safety shutdowns. Option: Auto Transfer Switch (ATS) ready and remote monitoring. |
| Performance & Dimensions | Voltage Regulation: ≤ ±1% Frequency Regulation: ≤ ±0.5% Sound Level: ≤ 85 dB(A) at 7 meters (with standard canopy) Overall Dimensions (LxWxH): Approx. 5500 x 2200 x 2500 mm (Trailer size may vary) Dry Weight: Approx. 3500 kg (Trailer included) |
1. Standard Price Display
Standard Trailer Package Price: [$2420]
This price is for the standard configuration as specified above. Valid for FOB [Your Port] until [Date].
2. Available Options (Affect Final Price)
Enhanced Canopy: Full weatherproof and lockable canopy for superior protection.
Automatic Transfer Switch (ATS): For integrated backup power systems.
Extended Fuel Tank: For longer operation without refueling.
Anti-Vibration Mounts: For sensitive applications.
3. Clear Call-to-Action
Looking for a different configuration or need a site-specific solution?
Click “Request Custom Quote” to get a tailored offer from our engineering team within 24 hours.
