Silent Shangchai 300kw diesel generator price&customization

Description

Silent Shangchai 300kw diesel generator price&customization

Here are the parameters for the Silent-type 300kW Shangchai Diesel Generator Set, along with a brief introduction to its performance and apSilent Shangchai 300kw diesel generator price&customization

Generator Set Parameters

1. Diesel Engine (Shangchai)

• Brand/Model: Shangchai (SC series, e.g., SC9D350D2)

• Type: 4-stroke, turbocharged, intercooled diesel engine

• Cylinders: 6 in-line

• Displacement: Approx. 9.7 L

• Rated Speed: 1500 rpm

• Fuel Consumption: Approx. 205–215 g/kWh (at full load)

• Cooling System: Water-cooled

• Starting System: 24V DC electric start

• Emission Compliance: Meets China National Standard (e.g., GB/T 2820)

2. Alternator (Leroy-Somer)

• Brand/Model: Leroy-Somer (e.g., LSA 43.2 S3 or equivalent)

• Type: Brushless, self-excited, synchronous alternator

• Insulation Class: H

• Protection Level: IP21-IP23 (standard)

• Voltage Regulation: ±1% (AVR equipped)

• Efficiency: Above 92% at full load

• Parallel Operation: Capable (with optional accessories)

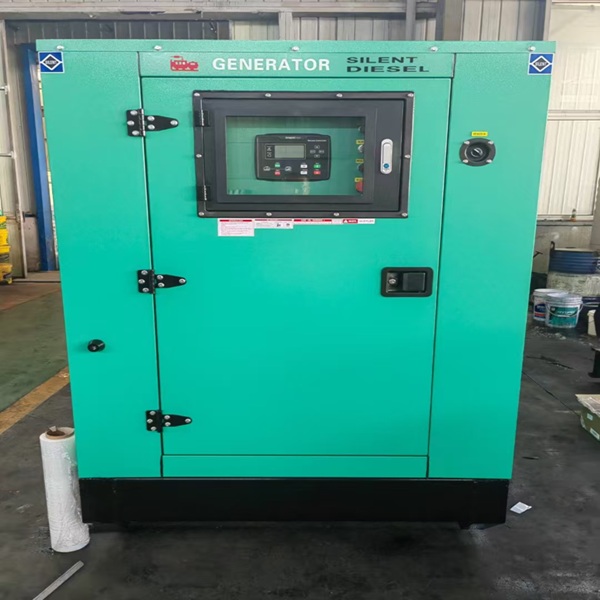

3. Control System (Deep Sea Electronics)

• Brand/Model: DSE 7320 or DSE 8610 MKII (Auto Mains Failure module)

• Display: LCD screen with multi-language support

• Functions: Auto start/stop, fault protection, remote monitoring, data logging, load sharing capability

• Protections: Over-speed, low oil pressure, high coolant temperature, over-voltage, under-voltage, over-frequency, under-frequency, overload

• Communication: Optional RS485/Modbus, GSM module for remote control

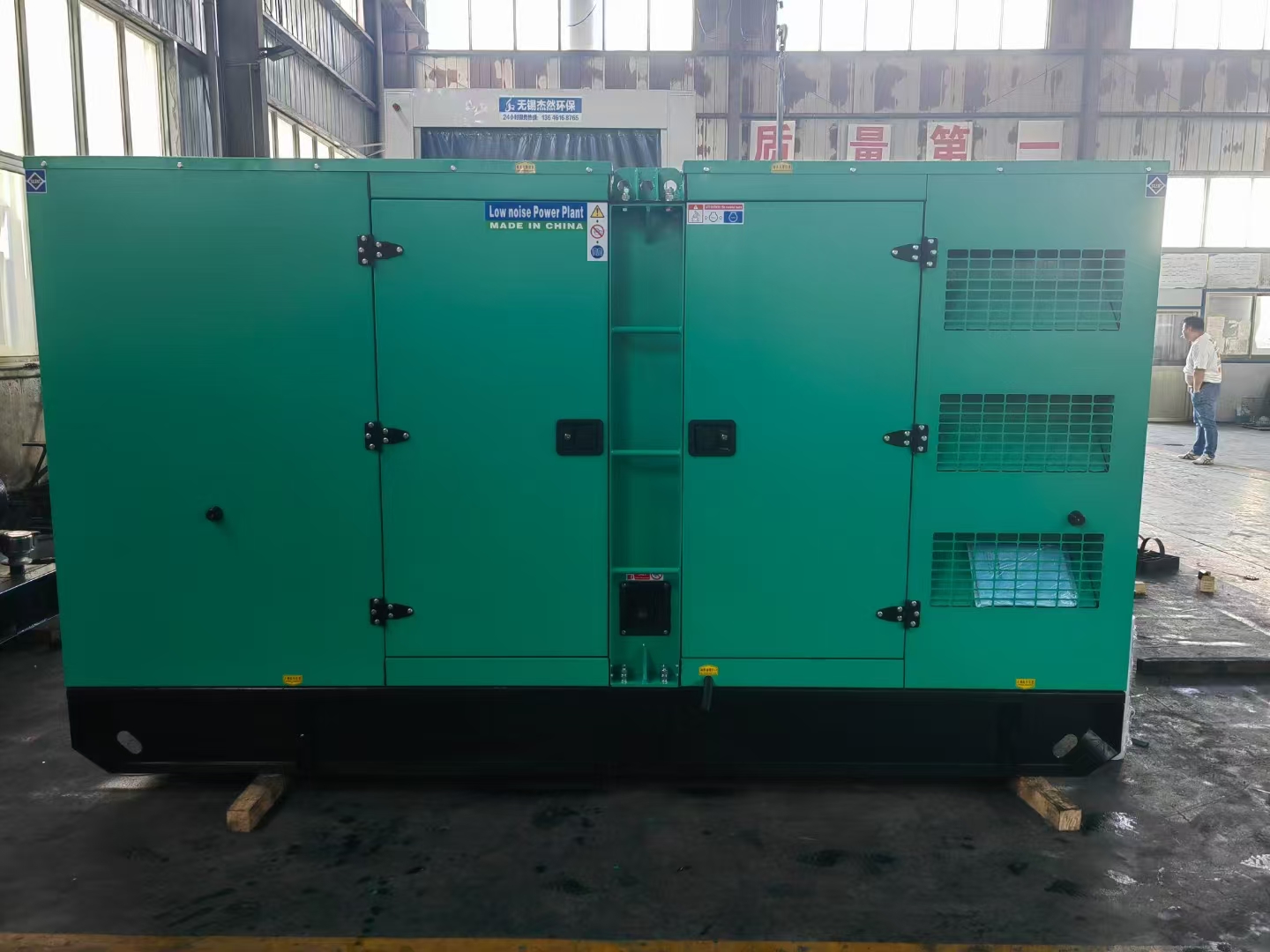

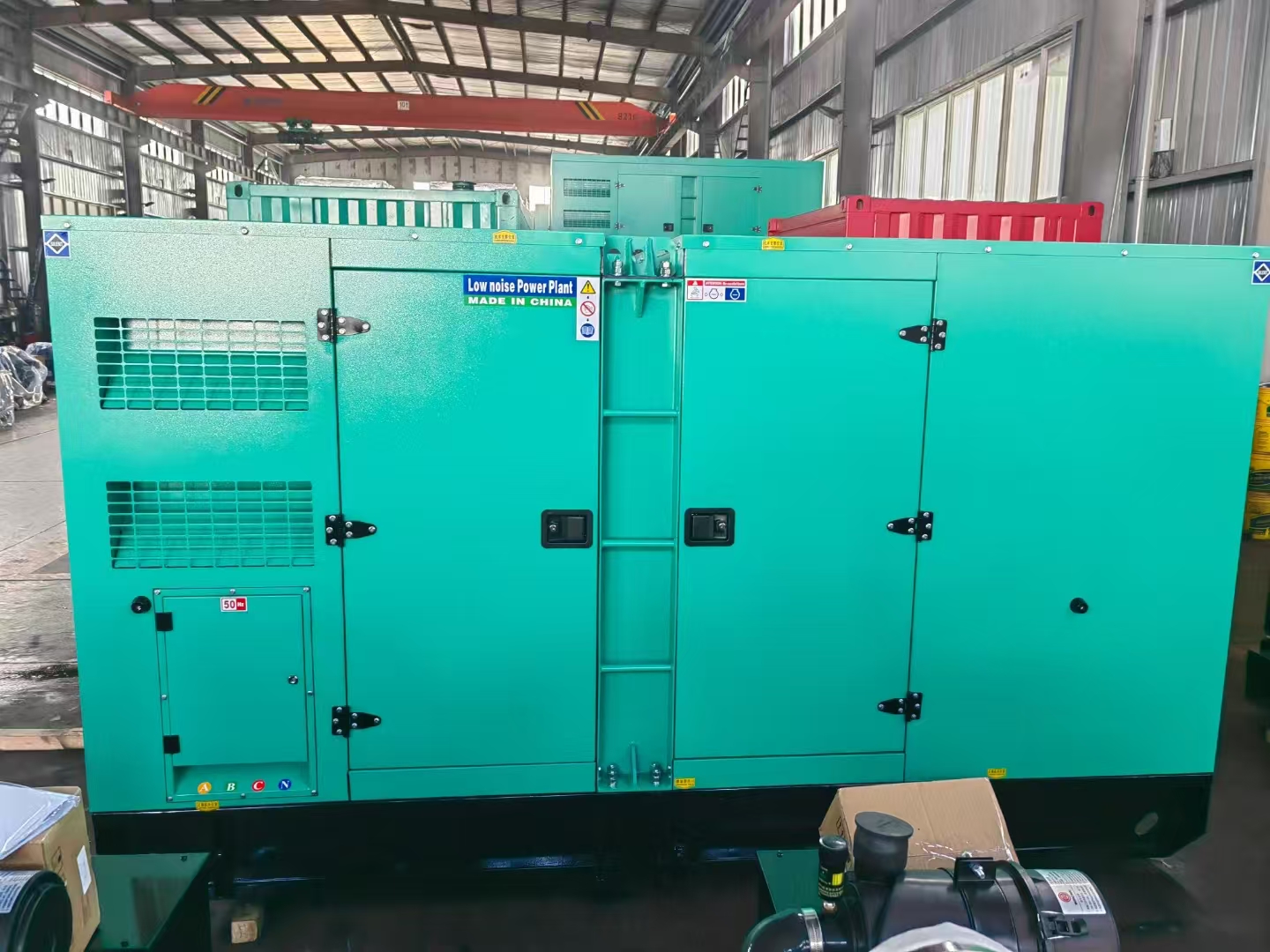

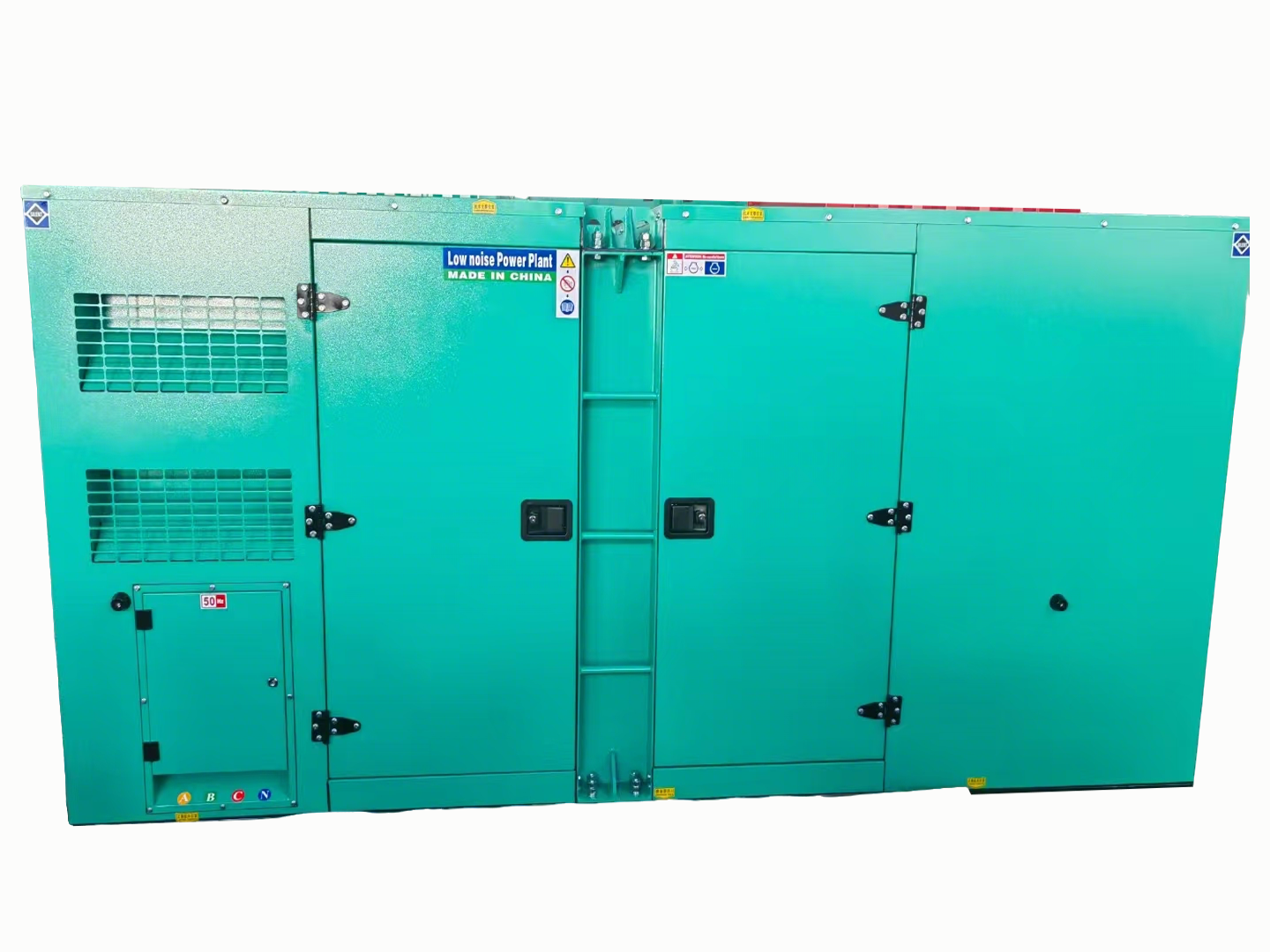

4. Silent Canopy Features

• Noise Level: ≤65–75 dB(A) at 1 meter (depending on configuration)

• Material: Heavy-duty steel with anti-corrosion coating

• Internal Design: Soundproofing foam, baffle walls, large silenced air intake/exhaust

• Vibration Damping: Engine and alternator mounted on anti-vibration isolators

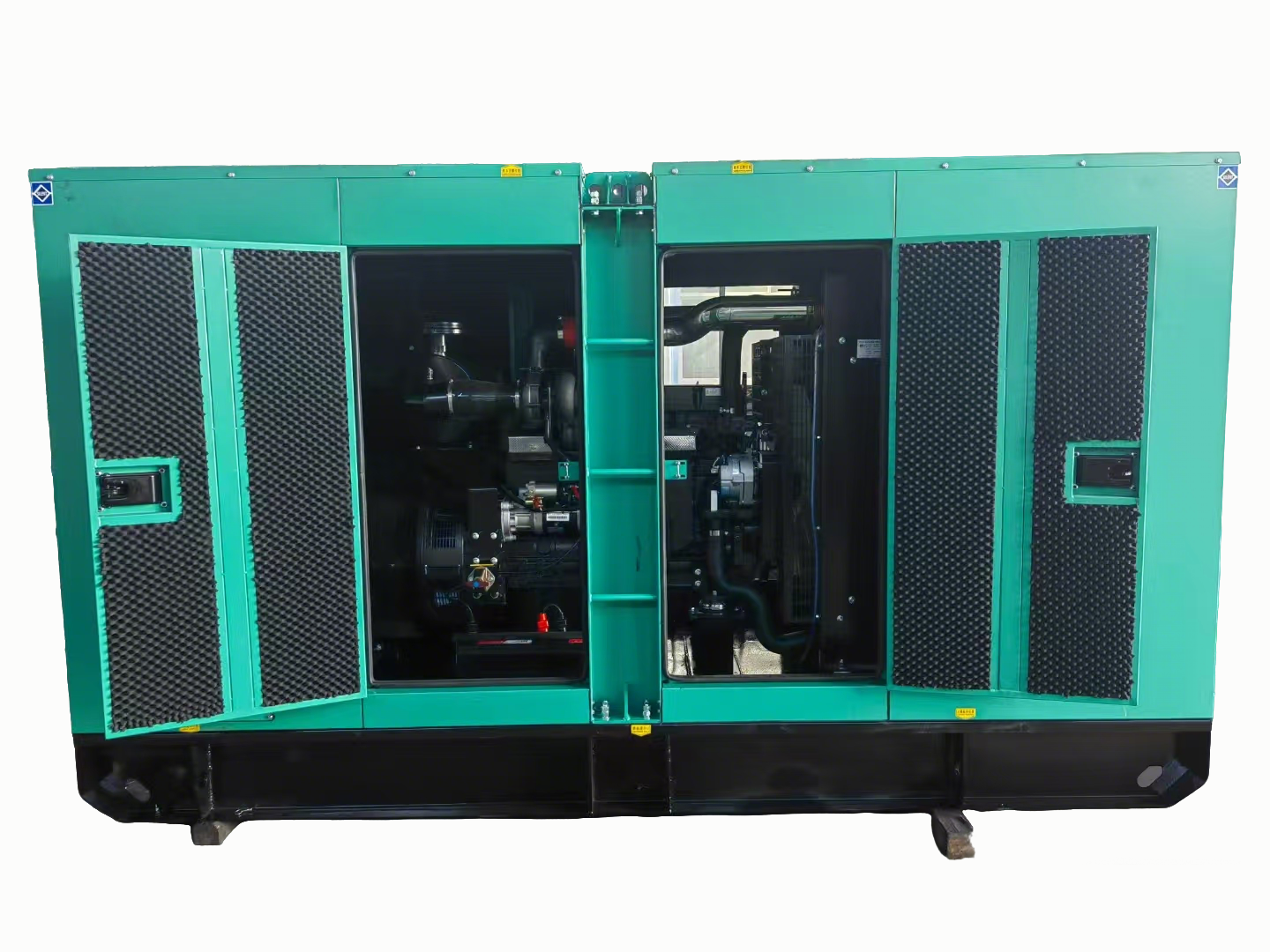

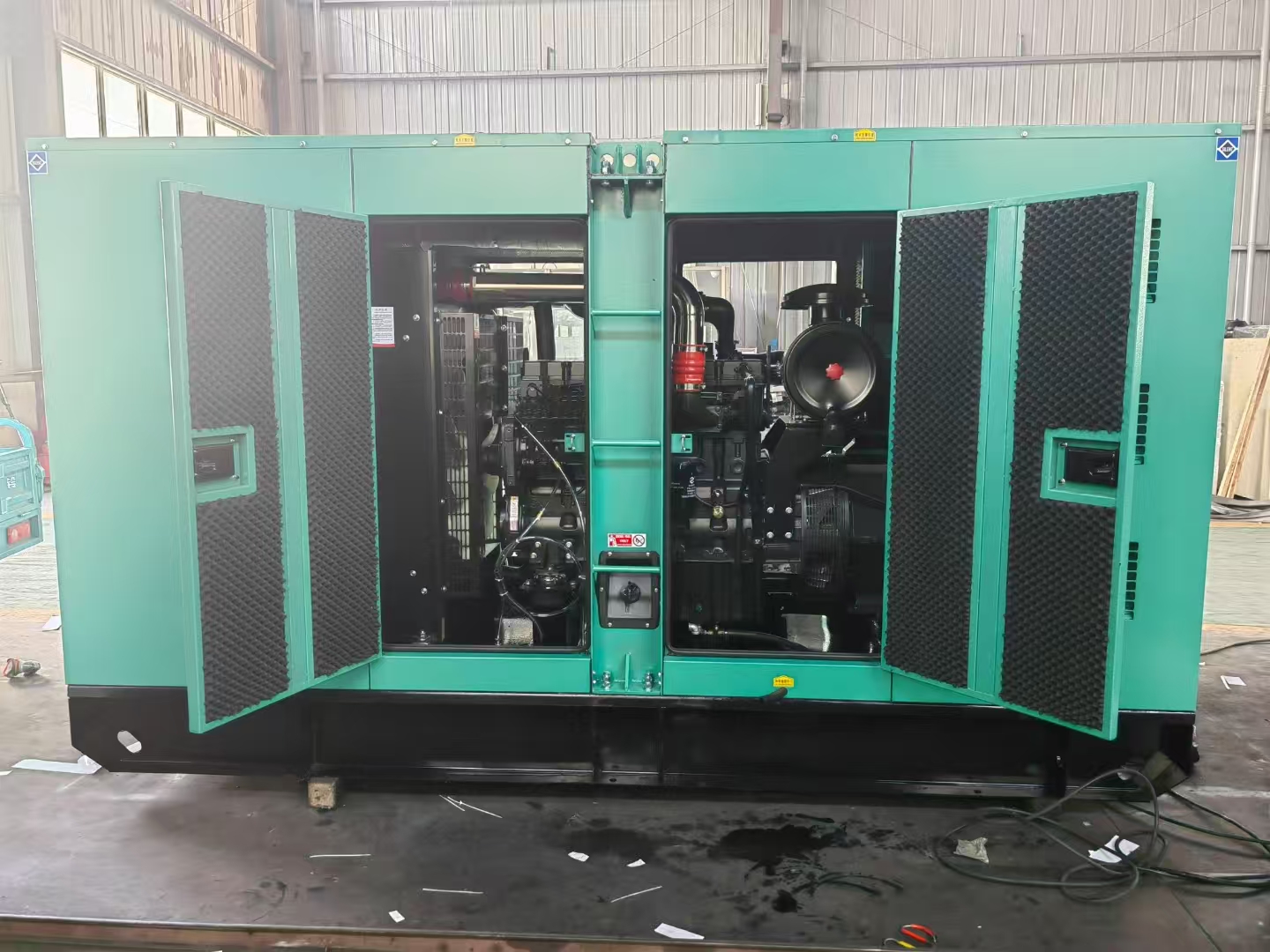

• Accessibility: Removable panels for easy maintenance

Performance Introduction

Diesel Engine Performance
The Shangchai SC series diesel engine is known for its high reliability, fuel efficiency, and low maintenance requirements. With turbocharging and intercooling technology, it delivers stable power output and good load response. Its robust design ensures long service life even under continuous heavy-duty operation. The engine meets national emission standards, making it suitable for regions with moderate environmental regulations.

Alternator Performance
The Leroy-Somer alternator offers excellent voltage stability, low harmonic distortion, and high efficiency. Its brushless design reduces maintenance needs and improves reliability. The alternator is well-suited for sensitive electronic equipment due to its precise voltage regulation and strong short-circuit withstand capability.

Overall Generator Set Features

• Low Noise Operation: Ideal for urban and noise-sensitive environments.

• Fast Response: Can handle sudden load changes effectively.

• User-Friendly Control: The DSE system allows easy operation, monitoring, and automation.

• Durability: Designed for continuous or standby duty in harsh conditions.

Applicable Scenarios

• Construction Sites: As primary or temporary power for equipment and facilities.

• Telecom Towers: Backup power for base stations and communication systems.

• Hospitals & Data Centers: Emergency standby power to ensure uninterrupted operations.

• Commercial Buildings: Backup power for offices, shopping malls, and hotels.

• Events & Outdoor Activities: Silent power supply for concerts, exhibitions, and film shooting.

• Industrial Plants: Standby or continuous power for manufacturing and processing units.

• Remote Areas: Primary power source for mining, agriculture, or island electrification.
