Description

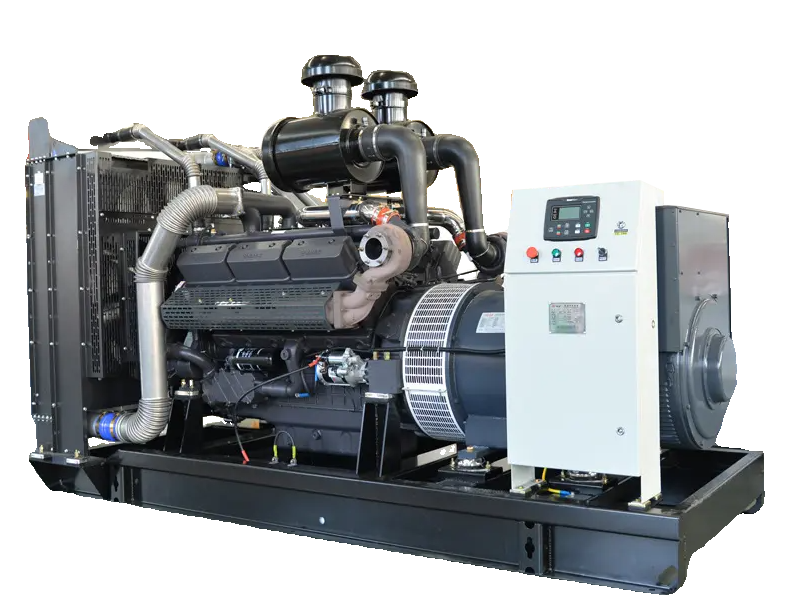

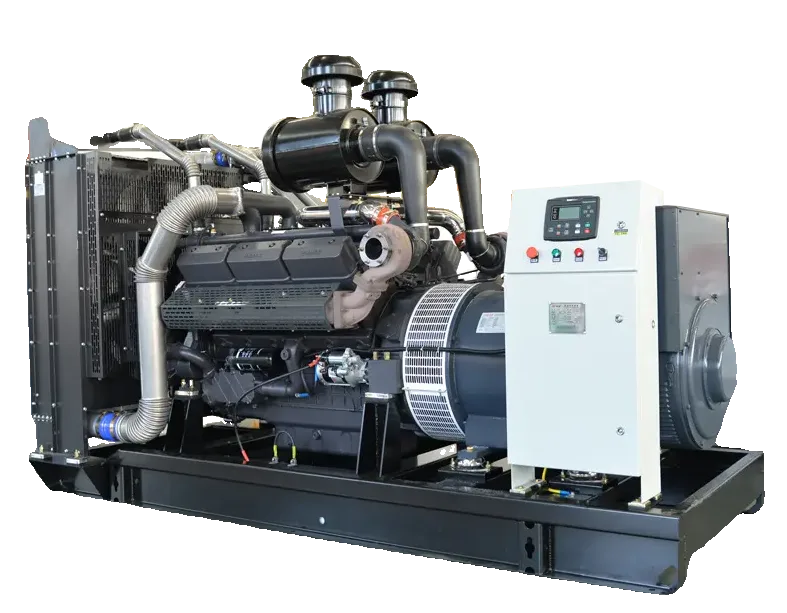

Shangchai Power 500kW Diesel Generator Set Product Introduction

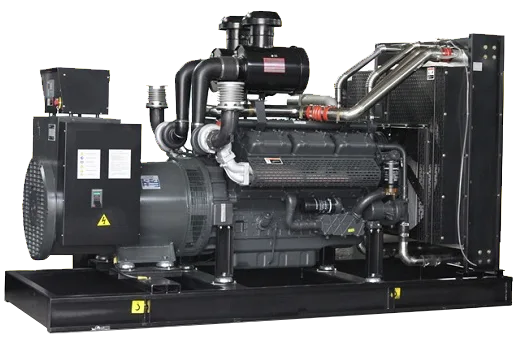

Price of Shangchai 500kw diesel generator set
Overview
The Shangchai Power 500kW diesel generator set is a high-performance power solution designed for industrial, commercial, and emergency power needs. Powered by the Shangchai 12GTAA27-G32 diesel engine and paired with the AOC-500-4 generator, it delivers exceptional power output, efficient voltage regulation, and superior fuel economy. This generator set adheres to modern power supply standards, making it ideal for environments demanding reliable and continuous power.
Technical Features of Shangchai Power 500kW Diesel Generator Set
- High Power Output
- With a robust 500kW output, the generator meets the energy demands of large factories, commercial complexes, and data centers, ensuring reliable and consistent power supply.
- Fuel Efficiency
- The Shangchai diesel engine is optimized for low fuel consumption, reducing operational costs. Its advanced combustion technology ensures efficient performance across varying load conditions.
- Stable Voltage Regulation
- Equipped with an advanced Automatic Voltage Regulation (AVR) system, the generator maintains consistent voltage output despite load fluctuations, delivering high-quality power.
- Durable Construction
- Built with a modular design, the frame and enclosure are constructed from high-strength materials with anti-corrosion coatings, ensuring durability, ease of maintenance, and long service life.
- Intelligent Control System
- Features an advanced control panel with capabilities for remote monitoring, automatic start/stop, and fault alarms, offering real-time oversight and enhanced operational management.
- Low Noise Operation
- Incorporates noise-reduction measures such as a low-noise muffler and soundproofing materials, making it suitable for environments with strict noise control requirements.
- Efficient Cooling System
- The closed water-cooling system ensures stable operating temperatures for the engine and generator, even under extended high-load conditions, enabling long-term, reliable performance.
Generator Set Technical Specifications
| Specification | Details |
|---|---|
| Brand | Shangchai |
| Model | 500kW |
| Power Output | 500kW (625kVA) |
| Rated Voltage | 400/230V |
| Frequency | 50Hz |
| Power Factor | 0.8 (Lagging) |
| Phases/Wires | Three-phase, four-wire |
| Speed | 1500rpm |
| Fuel Consumption | Approx. 190g/kWh |
| Noise Level | ≤95dB (at 7 meters) |
| Dimensions | 3800mm x 1600mm x 1900mm |
| Weight | 3650kg |
| Cooling Method | Closed-loop water cooling |
Diesel Engine Technical Specifications
| Specification | Details |
|---|---|
| Engine Brand | Shangchai |
| Engine Model | 12GTAA27-G32 |
| Number of Cylinders | 12 |
| Displacement | 27.0 liters |
| Engine Power | 550kW |
| Fuel System | Direct Injection |
| Cooling System | Closed-loop water cooling |
| Starting Method | Electric start |
| Air Intake | Turbocharged |
| Bore/Stroke | 150mm x 160mm |
| Compression Ratio | 17.5:1 |
| Emission Standard | Complies with national emission standards |
| Governor Type | Electronic governor |
Generator Technical Specifications
| Specification | Details |
|---|---|
| Generator Brand | AOC |
| Generator Model | AOC-500-4 |
| Rated Power | 500kW |
| Insulation Class | Class H |
| Protection Level | IP23 |
| Voltage Regulation | Automatic Voltage Regulation (AVR) |
| Speed | 1500rpm |
| Excitation System | Brushless self-excitation |
Performance Summary
Shangchai Power 500kw diesel generator set stands out for its high power output, stable performance, and fuel efficiency, making it an ideal choice for industrial, commercial, and emergency backup power applications. It offers excellent power output and user-friendly operation, ensuring high-efficiency performance in various applications. Whether used as the primary power source or as a standby system, this 500kW generator set meets the demand for high-performance power equipment.
