Description

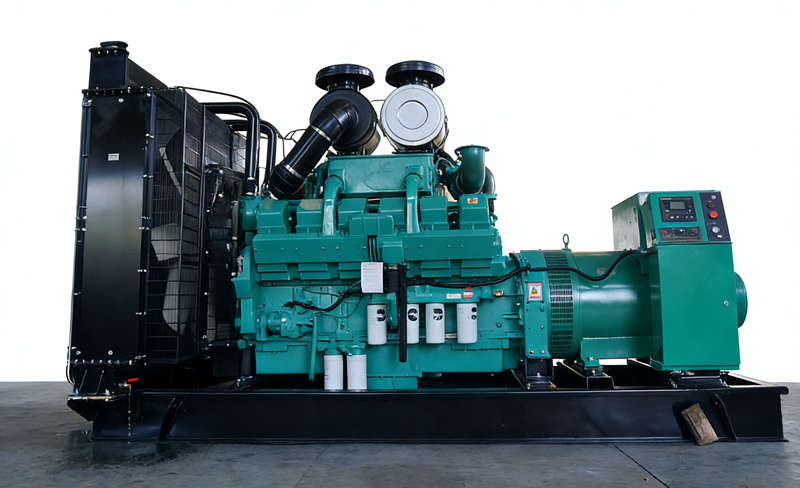

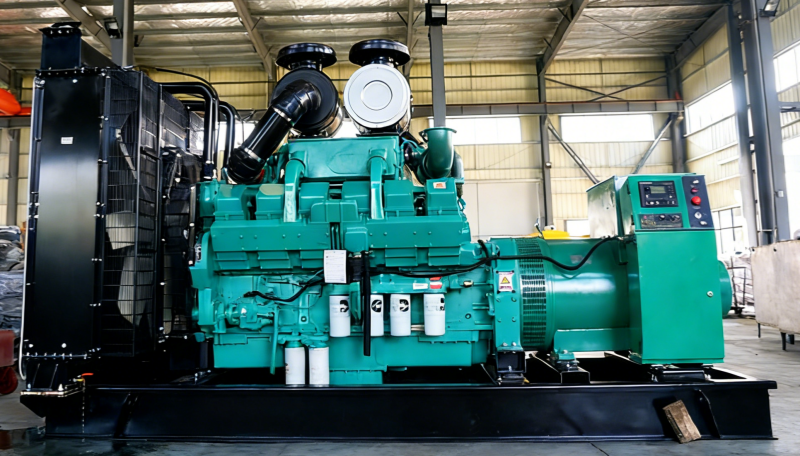

The 600kW Cummins Diesel Generator with KTA38-G2 Engine provides robust and reliable power for critical applications. Engineered for high performance, this set combines proven Cummins technology with a durable Stamford alternator to ensure maximum uptime.
| Category | Specification |
|---|---|
| Prime Power Rating | 600 kW / 750 kVA (at 50Hz, 1500 rpm) Standby Rating: 660 kW / 825 kVA |
| Engine | Make/Model: Cummins KTA38-G2 Configuration: V12, Four-Stroke, Turbocharged & Aftercooled Displacement: 38.0 L Rated Speed: 1500 rpm Fuel Consumption: Approx. 195-205 g/kWh (at full load) Emissions Compliance: EPA Tier 2 / EU Stage II (or as specified) |
| Alternator | Make/Model: Stamford (e.g., HC634E or equivalent 600kW model) Type: Brushless, Self-Excited Voltage: 400/230V, 50Hz (Standard. Configurable: 415V, 11kV, etc.) Insulation/Protection: Class H / IP23 |
| Control System | Make/Model: Cummins PowerCommand® or Deep Sea 9020 Features: Full system monitoring, auto start/stop, fault protection, remote comms (Modbus) |
| Standard Features | Base Frame: Heavy-duty steel skid with anti-vibration mounts. Cooling: Belt-driven radiator. Starting: 24V DC electric start system. |
| Dimensions & Weight | LxWxH (approx.): 4000 x 1500 x 2200 mm (Open Skid) Dry Weight (approx.): 5000 – 5500 kg |
Request a Custom Quote for This 600kW Cummins Generator
Customized Solutions for Your Project
Every power project is unique. Beyond this standard 600kW configuration, we specialize in tailoring solutions to your exact needs:
Voltage & Frequency: Configurable for 400/230V, 415/240V, 6.6kV, or 11kV outputs at 50Hz or 60Hz.
Enclosure Options: Choose from open skid, weatherproof canopy (IP23), or super-silenced canopy (noise levels as low as 75 dB(A) at 1 meter) for urban installations.
Fuel System Integration: We can design and supply integrated base fuel tanks or complete day-tank and bulk-fuel systems with automatic transfer.
Turnkey Power Plants: For large-scale projects, we act as your OEM partner, providing complete power plants including switchgear, distribution panels, and sound-attenuated enclosures.
1. What are the key advantages of the Cummins KTA38-G2 engine in this 600kW generator?
The Cummins KTA38-G2 is renowned for its exceptional durability and fuel efficiency in continuous operation. Its V12 design provides smooth power delivery and fast load response, making this 600kW generator ideal for prime power applications where reliability is non-negotiable. Compared to other brands in its class, it offers a lower total cost of ownership (TCO) due to its long service intervals and globally available parts support.
2. Is this 600kW generator suitable for parallel operation and integration with a building management system (BMS)?
Yes, it is fully capable. The generator can be equipped with advanced paralleling control systems (like Cummins PowerCommand®) for synchronizing multiple units, creating N+1 redundancy for critical facilities like data centers and hospitals. It supports standard industrial communication protocols (Modbus TCP/IP, J1939), allowing seamless integration into your existing SCADA or BMS for remote monitoring and control.
To learn about the parallel operation of diesel generator sets, please visit the intelligent diesel generator set page
3. What certifications and emission standards does this unit comply with?
The standard configuration complies with EPA Tier 2 and EU Stage II emission regulations. For projects requiring stricter standards (such as EPA Tier 4 Final or EU Stage V for specific regions), we can provide engineering solutions and documentation support. All units undergo rigorous factory testing and can be supplied with a complete performance test report compliant with ISO 8528.
4. What is included in your after-sales support and warranty for such a large generator?
We provide a comprehensive 24-month or 2,000-hour warranty (whichever comes first) on the entire generator set. Our support extends beyond warranty with genuine Cummins and Stamford spare parts supply, detailed operation manuals, and access to global service network support. For critical installations, we offer on-site commissioning and operator training services.
