Cummins 100kw Silent Diesel Generator Set – Technical Specifications & Features
Introduction:

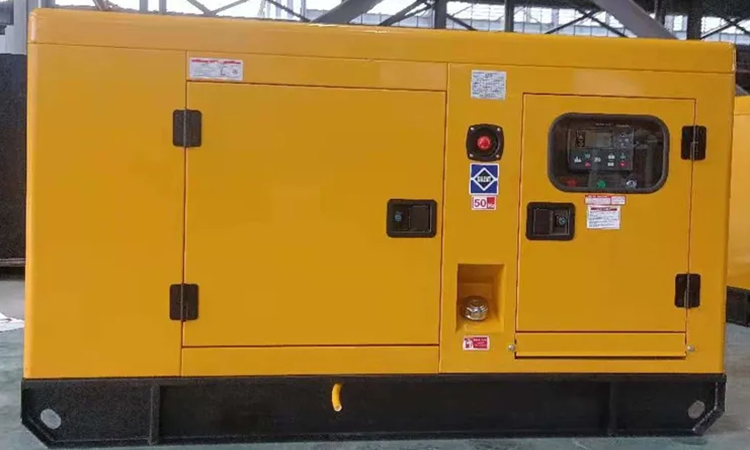

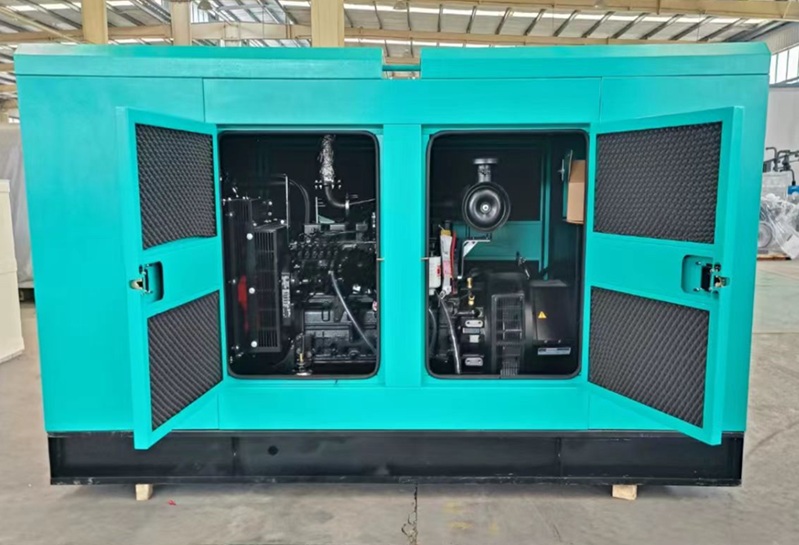

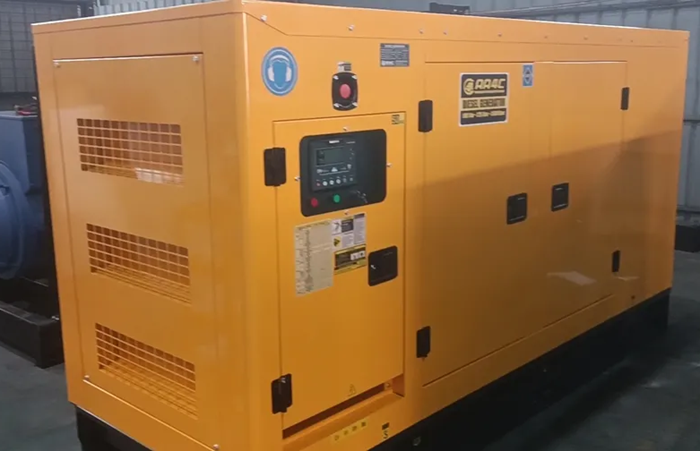

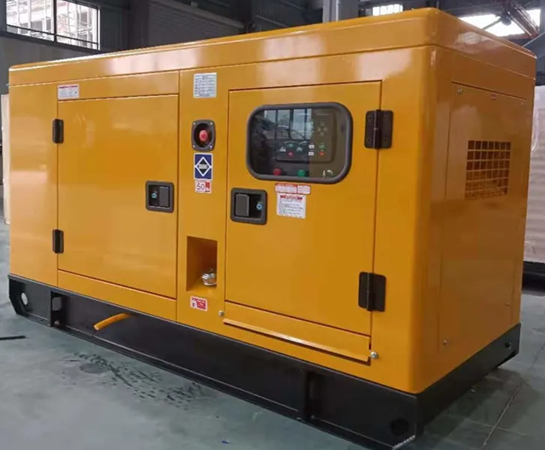

The Cummins 100kW silent diesel generator set is a premium power solution designed for applications requiring reliable electricity with minimal noise disturbance. Combining the robustness of Dongfeng Cummins engines with the efficiency of Leroy-Somer alternators, this enclosed canopy unit is ideal for hospitals, residential complexes, telecom sites, and outdoor events where quiet operation is essential.
Technical Specifications
| Component | Specification |
|---|---|
| Prime Power Rating | 100 kW / 125 kVA |
| Standby Power Rating | 110 kW / 138 kVA |
| Engine Model | Dongfeng Cummins 6BTA5.9-G2 |
| Engine Type | 6-Cylinder, Turbocharged, After-cooled |
| Alternator Brand | Leroy-Somer LSA 44.3 |
| Voltage | 400/230V, 3-Phase, 50 Hz |
| Speed | 1500 RPM |
| Fuel Consumption | ≈ 22 L/hr @ 100% load |
| Noise Level | ≤ 68 dB(A) at 7 meters |
| Enclosure | Full Canopy with Anti-vibration Mounts |
| Dimensions (L×W×H) | 2600 × 1100 × 1600 mm |
| Dry Weight | Approx. 1850 kg |
Key Features & Components Overview
1. Dongfeng Cummins Engine
Dongfeng Cummins is a joint venture between Cummins Inc. (USA) and Dongfeng Motor Group, renowned for manufacturing durable, fuel-efficient, and low-emission diesel engines. The 6BTA5.9 series is widely used in power generation due to its high reliability, easy maintenance, and global service network.
2. Leroy-Somer Alternator
Leroy-Somer, a brand of Nidec Group, is a global leader in alternator manufacturing. The LSA series offers excellent motor starting capability, voltage stability, and long service life, making it a preferred choice for critical power applications.
3. Silent Canopy Performance
The generator is housed in a robust, all-weather canopy designed for noise suppression and environmental protection:
Acoustic Treatment: Multi-layer sound-absorbing materials and baffled air intake/exhaust systems reduce operational noise to ≤68 dB(A).
Weather Resistance: IP23 protection rating ensures reliable performance in rain, dust, and moderate wind conditions.
Vibration Control: Integrated anti-vibration mounts and flexible couplings minimize structural vibration.
User-Friendly Design: Large service doors provide easy access for maintenance, and integrated lifting hooks facilitate transportation.
Typical Applications
Healthcare: Hospital backup power
Construction: Site power for sensitive urban areas
Telecommunications: Tower power supply
Events: Outdoor concerts, exhibitions
Residential/Commercial: Backup power for apartments, hotels, and offices
Conclusion:
The Cummins 100kW silent diesel generator set offers a balanced combination of performance, durability, and quiet operation. With trusted components from Dongfeng Cummins and Leroy-Somer, it provides a dependable power solution for applications where noise control and reliability are paramount.
For detailed pricing, custom configurations, or technical support, please contact our power solutions team.
