1500kW (1875kVA) Mission-Critical Power: The Industry Standard for Large-Scale Infrastructure.
Designed for Tier IV data centers, large hospitals, and massive industrial complexes. Our 1500kW range delivers unparalleled G3-class transient performance and 24/7 reliability for the world’s most demanding power environments
1500kW (1875kVA) Core Brand Technical Matrix (Mega-Series)
| Technical Feature | MTU (German) | Perkins (UK) | Cummins (USA) | Baudouin (French) | Yuchai (China) |
|---|---|---|---|---|---|
| Engine Model | 12V4000G24F | 4012-46TAG3A | QSK50-G4 | 16M33G1900/5 | YC16VTD2510-D30 |
| Cylinder Conf. | V-12 | V-12 | V-16 | V-16 | V-16 |
| Displacement | 57.2 L | 45.8 L | 50.3 L | 52.3 L | 75.6 L |
| Transient Class | ISO G3 (Superior) | ISO G3 | ISO G3 | ISO G3 | ISO G2 / G3 |
| 8-Hr Fuel Use | ~2,890 Liters | ~2,880 Liters | ~2,950 Liters | ~2,850 Liters | ~2,980 Liters |
| Technical Advantage | German Precision: Longest time between overhauls (TBO) and superior ADDEC electronics. | Data Center Choice: World-renowned for Tier III/IV stability and global parts availability. | Rugged Reliability: Specialized high-pressure common rail (HPCR) for clean combustion. | Modern Density: High power-to-weight ratio; French heritage for modern industrial loads. | Massive Displacement: Incredible torque and load-carrying capacity for heavy industrial mines. |
| Est. Price (Open) | $250k - $310k | $220k - $270k | $210k - $250k | $155k - $185k | $135k - $165k |
Strategic Engineering Analysis for the 1500kW Range
1. The “Prestige” Performance: MTU & Perkins
MTU (12V4000 Series): This is the choice for clients where “Failure is not an option” (e.g., International Airport hubs, Nuclear Power facilities, or Super-Scale Data Centers). MTU engines offer the most advanced digital monitoring and have the highest resale value on the global market.
Perkins (4012 Series): Known for its “G3 Class” performance, Perkins is the standard building block for modular power plants. It offers the most balanced profile of fuel efficiency and transient load acceptance.
2. The “Industrial Powerhouse”: Yuchai YC16VTD
Why the YC16VTD2510-D30? With a massive 75.6L displacement across 16 cylinders, this Yuchai model is built to handle “dirty” environments and high-surge loads better than smaller, high-speed engines.
Total Displacement Advantage: In heavy industrial motor starting (like massive water pumps or mining crushers), the raw torque from a 75.6L engine provides a safety margin that protects the alternator from frequency dips.
3. Critical Application Advice
For Data Centers (Tier III/IV): Stick to MTU, Perkins, or Cummins. Their transient response (ability to pick up 100% load in one step) is strictly regulated and globally certified.
For Mining, Factories, and Prime Power: Yuchai or Baudouin offer the best Lifecycle ROI. The money saved on the initial purchase ($100k+ difference) can be reinvested into fuel storage or facility expansion.
Core Technology Demonstration of 1500kw Diesel Generator
How to dissipate heat from a high-power 1500kw diesel generator
Heavy-Duty 50°C Radiator: Standard high-ambient radiators to ensure the 1500kW engine never derates, even in desert conditions.
Custom Ventilation Solutions: Specialized air intake and exhaust designs for indoor basement installations, preventing heat recirculation.
Coolant Pre-Heating: Integrated heating systems to ensure the engine hits full load within 10 seconds, regardless of outside temperature.
Smart Thermal Monitoring & Safety
（How the system protects itself.）
Two-Stage Alarms: High-temperature “Pre-alarm” followed by “Critical Shutdown.”
Coolant Level Sensors: To prevent engine “hot spots” caused by air pockets in the cooling system.
Jacket Water Heaters: Explain that heat management also includes keeping the engine warm (Pre-heating) during standby so it can take 100% load instantly in cold weather.
How High-Ambient Radiators Work:
（How does a high-temperature environment radiator dissipate heat）
Oversized Core: Increased surface area and fin density for maximum heat exchange.
High-Pitch Fan: High-static pressure fans force massive airflow through the core.
Advanced Flow: Optimized coolant paths dissipate heat faster than standard units.
Result: Prevents engine “Derating” (power loss), maintaining 100% output even in 50°C (122°F) extreme heat.
Remote Cooling Solutions (For 1000kW+ Projects)
- （Crucial for large-scale plants and basement installs.）
Vertical vs. Horizontal Remote Radiators: Explain when to use roof-mounted remote cooling systems to move heat away from the generator room.
Heat Exchangers: Discuss the use of Plate Heat Exchangers for projects where the engine coolant is separated from the secondary cooling loop (common in high-rise buildings).
Electric Fans (VFD): Mention the use of Variable Frequency Drives (VFD) on remote fans to save energy and maintain precise temperature control.
Transient Response Test Table for 1500kw Diesel Generator (Cummins+Leyema)
Frequency Stability: Our 1500kW units maintain frequency within ±0.25% during steady-state, meeting the most stringent IT equipment requirements.
Voltage Recovery: Digital AVRs (Automatic Voltage Regulators) ensure rapid voltage recovery after massive motor-start impacts, preventing delicate electronics from tripping.
Equipment: Cummins+Leleisenma generator1500kW (1875kVA) | Alternator: Stamford PI734 | Controller: Deep Sea 8610
Testing Objective: Verify G3-Class compliance (Sudden load acceptance and steady-state stability).
1. ISO 8528-5 G3-Class Acceptance Standards
Before showing the data, we define the "Pass" criteria for the client:
Voltage Dip: ≤15% (During sudden load)
Frequency Dip ≤ 7% (During sudden load)
Recovery Time: ≤3 Seconds
| Time (Min) | Load Step (%) | Actual Power (kW) | Voltage Dip (%) | Freq. Dip (%) | Recovery Time | Oil Pressure | Water Temp |
|---|---|---|---|---|---|---|---|
| 00:00 | 0% (Idle) | 0 kW | -- | -- | -- | 4.5 bar | 45°C |
| 00:10 | 0 →25% | 375 kW | -4.2% | -1.5% | 1.1s | 5.2 bar | 72°C |
| 00:20 | 25 →50% | 750 kW | -5.8% | -2.1% | 1.4s | 5.4 bar | 78°C |
| 00:30 | 50 →75% | 1125 kW | -7.5% | -3.2% | 1.8s | 5.5 bar | 82°C |
| 00:40 | 75 →100% | 1500 kW | -9.8% | -4.5% | 2.2s | 5.6 bar | 85°C |
| 00:50 | 110% (Overload) | 1650 kW | -2.1% (S) | -1.0% (S) | Steady | 5.6 bar | 89°C |
| 00:55 | 100 →0% | 0 kW | +10.5% | +5.2% | 2.5s | 4.8 bar | 86°C |
| 01:00 | Cool Down | 0 kW | -- | -- | -- | 4.2 bar | 75°C |

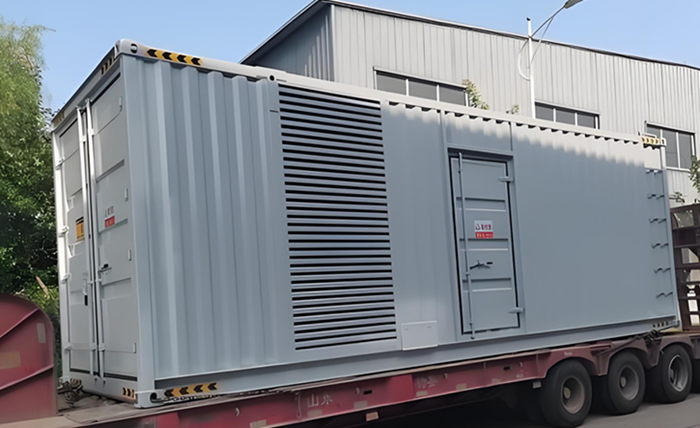

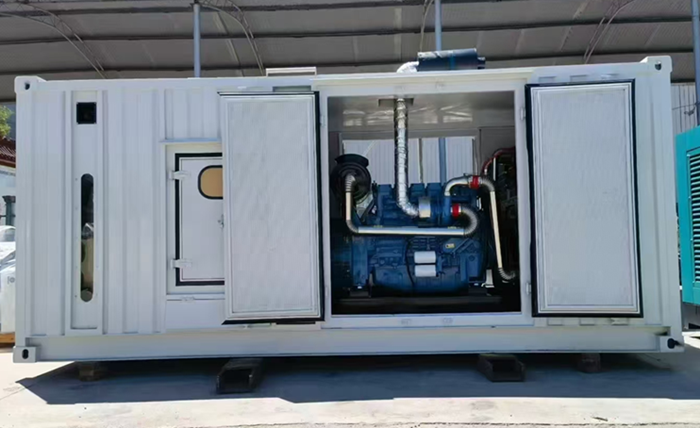

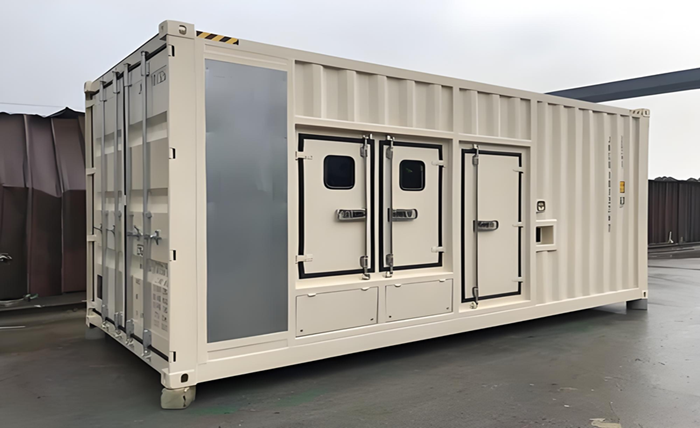

40ft High Cube ISO Container: Fully integrated with fuel systems, fire suppression, lighting, and internal switchgear.
Acoustic Engineering: Multi-stage noise attenuation to reduce the massive roar of a 1500kW engine to manageable levels for outdoor urban use.
