1100kW Prime & Standby Power: Engineering for Mission-Critical Continuity

Q: For data center use, what uptime tier can a paralleled 1100kW system support?

A well-engineered system with redundant (N+1 or 2N) 1100kW units, dual-fuel capability, and robust switchgear can form the core of a Tier III or Tier IV data center power infrastructure, supporting concurrent maintainability and fault tolerance.

Q: What are the fuel storage and supply recommendations for continuous 24/7 operation?

For prime power, we recommend bulk fuel storage with a day tank and automated transfer system. We can design the complete fuel farm, including filtration, polishing, and leak detection, to ensure uninterrupted supply.

Q: How do you ensure compliance with local environmental regulations for large installations?

Our engineering support includes advising on local permitting requirements. We provide the necessary generator performance and emissions data, and can modify designs (e.g., adding secondary containment) to meet specific regional environmental codes.

Q: Do you offer performance guarantees or liquidated damages?

For turnkey projects, we offer performance guarantees on fuel consumption and output power. Liquidated damages for delay or performance shortfall can be negotiated and included in the commercial contract, aligning our incentives with project success.

Heavy-duty generator sets designed for hyperscale data centers, heavy industry, and utility applications, backed by global project execution expertise.

For hyperscale data centers and major industrial plants, 1100kW units are selected for their reliability and scalability within a redundant architecture. We understand the critical path of such projects. To discuss tier-level design, fuel system engineering, and long-term service agreements, please connect with our critical infrastructure team.

1100kW High-Power Technical Matrix (Horizontal Comparison)

Technical Feature	Cummins	Perkins	Baudouin	Yuchai
Engine Model	KTA50-G3	4012-46TWG2A	12M33G1400/5	YC12VC1680-D31
Configuration	V-16 Cylinder	V-12 Cylinder	V-12 Cylinder	V-12 Cylinder
Displacement	50.3 L	45.8 L	39.2 L	79.2 L
8-Hour Fuel Use	2200 Liters	2150 Liters	2120 Liters	2250 Liters
Technical Advantage	The Industry Standard: Dual-pump fuel system; legendary for ease of overhaul and part availability.	Exceptional Transient: Fast load acceptance and G3-class power stability. Ideal for IT loads.	Modern Efficiency: Highest power density and best fuel-to-kW ratio in the class.	Massive Displacement: Built for heavy mining and high-altitude durability.
Cooling System	50°C Remote Radiator	50°C Attached Radiator	50°C Attached Radiator	50°C Remote Radiator

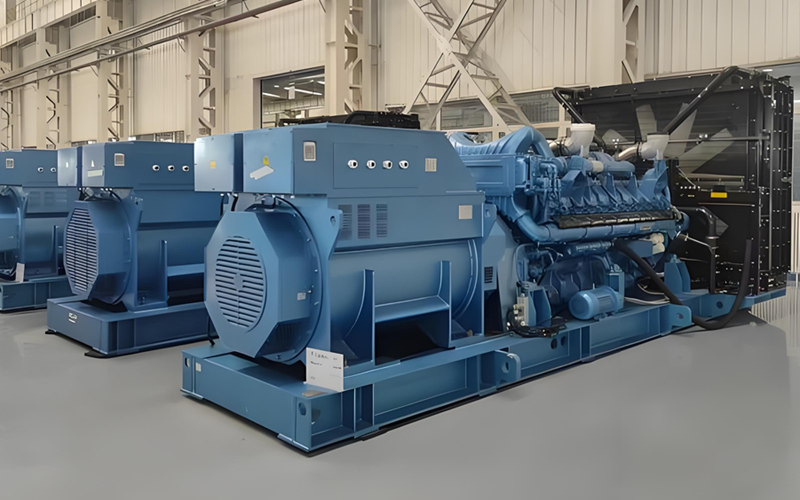

Conventional configuration of 1100kw diesel generator

Parallel Systems · Containerized Solutions · High-Voltage Integration – Engineering the 1.1MW Power Plant

Strategic Analysis: 2 x 1100kW Parallel System vs. 1 x 2200kW Single Unit

Comparison Factor	Single Unit (1 x 2200kW)	Parallel System (2 x 1100kW)	The "Reliability" Winner
System Redundancy	Zero Redundancy. If the engine or alternator fails, the entire facility loses power.	N+1 Redundancy. If one unit fails, the other continues to power critical loads (50% capacity).	Parallel System
Operational Efficiency	Low efficiency during "Light Load" periods (e.g., nights/weekends), leading to high fuel waste.	Load Demand Titration. Only one unit runs during low-load periods, optimizing fuel consumption.	Parallel System
Maintenance & Downtime	Total blackout required for routine oil changes or engine overhauls.	Continuous Power. Service one unit while the second unit remains active to support essential services.	Parallel System
Engine Longevity	High risk of "Wet Stacking" (carbon buildup) if the unit frequently runs at <30% load.	Avoids wet stacking by ensuring the active unit always operates within the 70-80% "Sweet Spot."	Parallel System
Initial Investment (CAPEX)	Slightly lower initial cost for the machine, but higher infrastructure costs.	Higher initial cost for synchronization controllers (DSE/ComAp) and dual switchgear.	Single Unit
Logistics & Installation	Extremely difficult to transport; requires specialized heavy-lift cranes and massive space.	Modular & Flexible. Easier to transport in standard 20ft containers; smaller footprint per unit.	Parallel System
Future Scalability	Fixed capacity. Expanding requires replacing the entire unit.	Easy Expansion. You can add a 3rd or 4th 1100kW unit as your facility grows.	Parallel System

To learn about parallel generators and automation, please refer to the 【Automated Diesel Generator Sets】 page

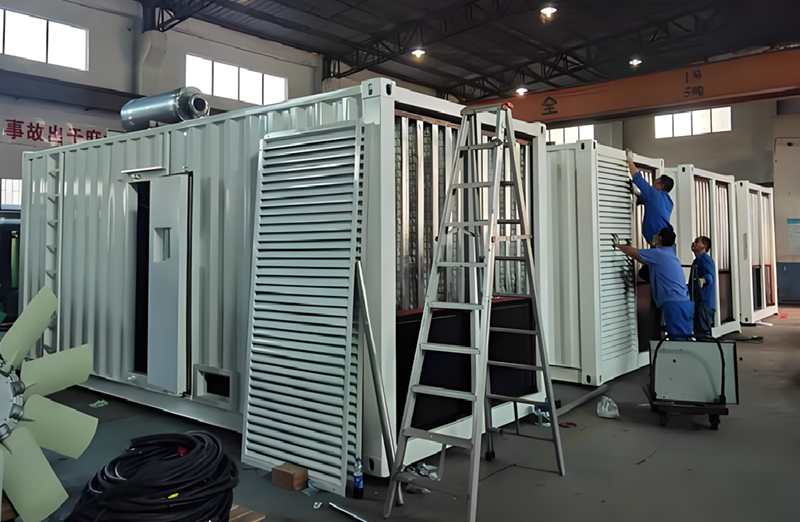

1100kW units are too large for standard silent boxes; they need ISO containers.

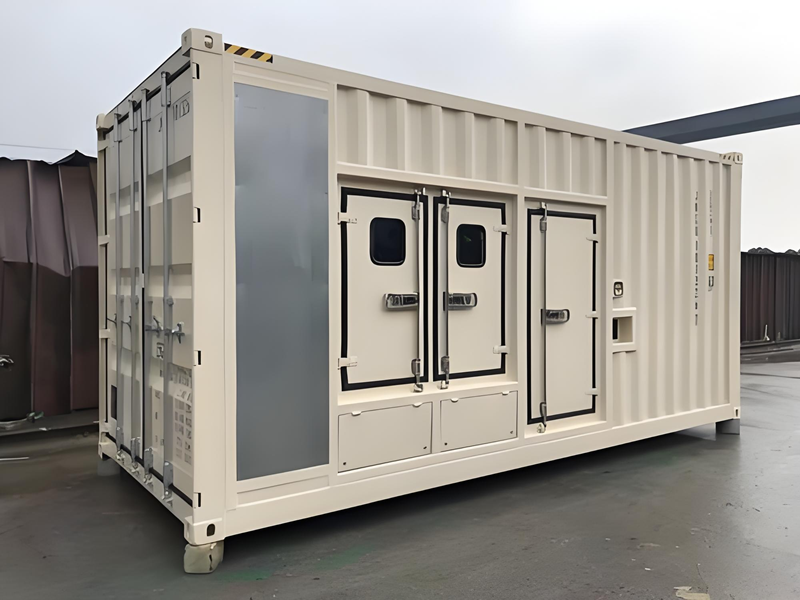

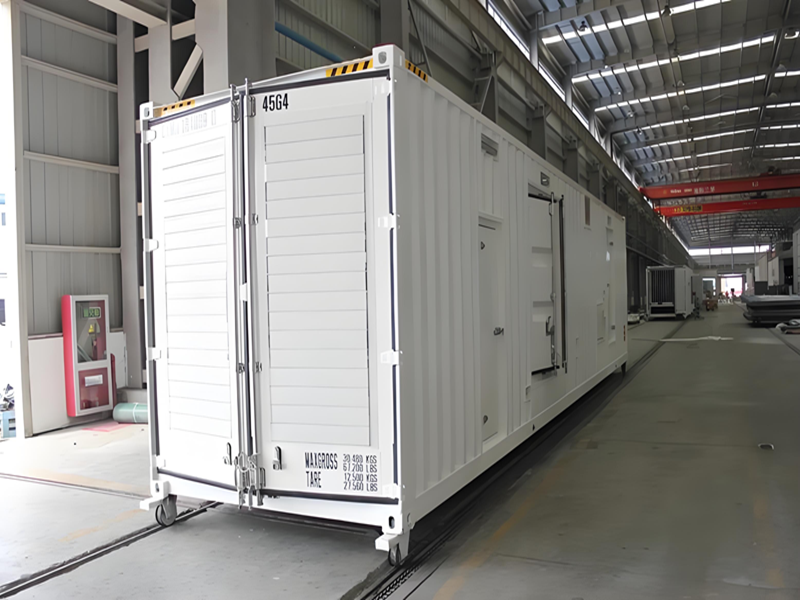

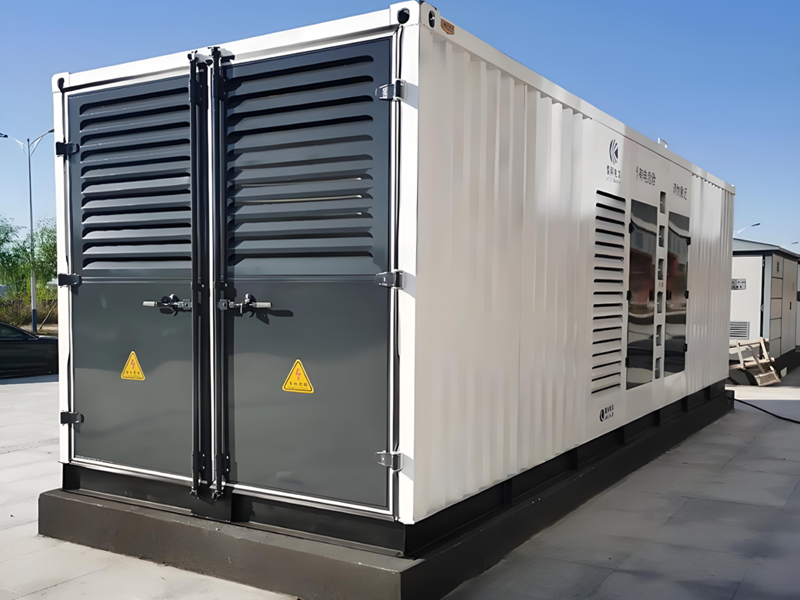

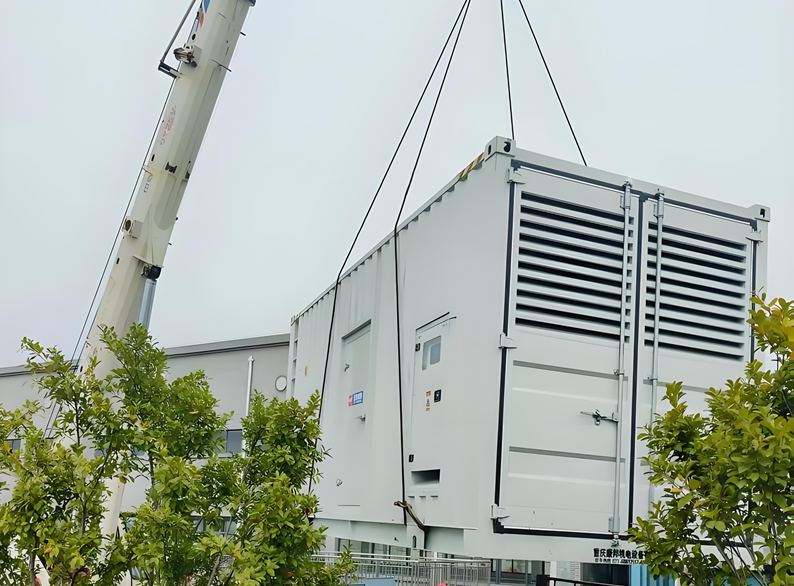

20ft/40ft ISO Containers: “Our 1100kW units are housed in standard CSC-certified high-cube containers for easy global shipping and site deployment.”
Sound Attenuation: Mention “High-performance rock wool and internal residential-grade silencers” to achieve <75dB at 7 meters even at this massive power.

Project Brief: Power for a Malaysian Data Center

We delivered and commissioned four 1100kW Cummins-powered containerized generator sets to a new data center facility in Cyberjaya, Malaysia.

Faced with the need for Tier-III redundancy and reliable backup power in a space-constrained environment, the client required a plug-and-play solution. Each unit featured a Cummins QSK38 engine in a fully integrated, weatherproof sound-attenuating container, pre-tested for parallel operation.

The containerized design allowed for fast, modular installation. The four units now form a synchronized N+1 backup power system, ensuring 99.99% uptime for the client’s critical server loads.

To view more container styles and functions, please refer to the 【Containerized Diesel Generator Set】 page

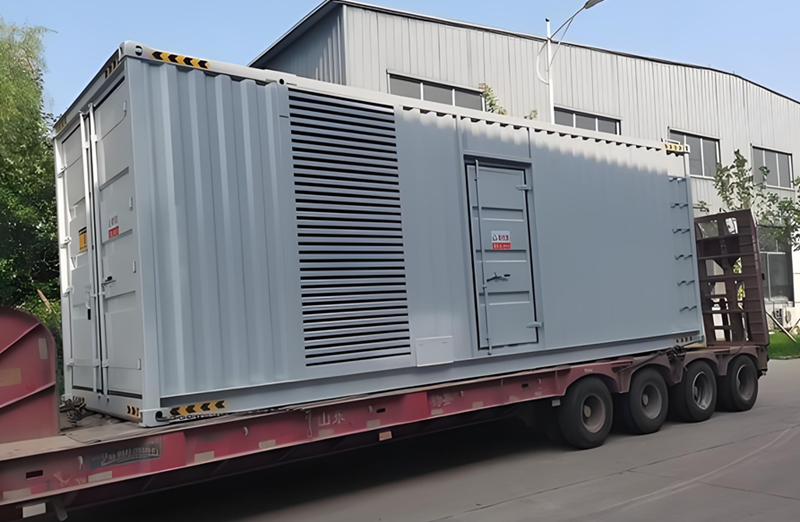

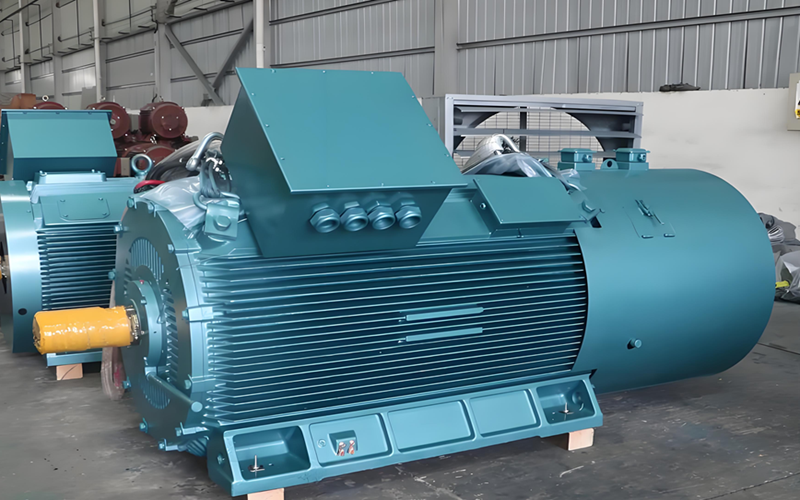

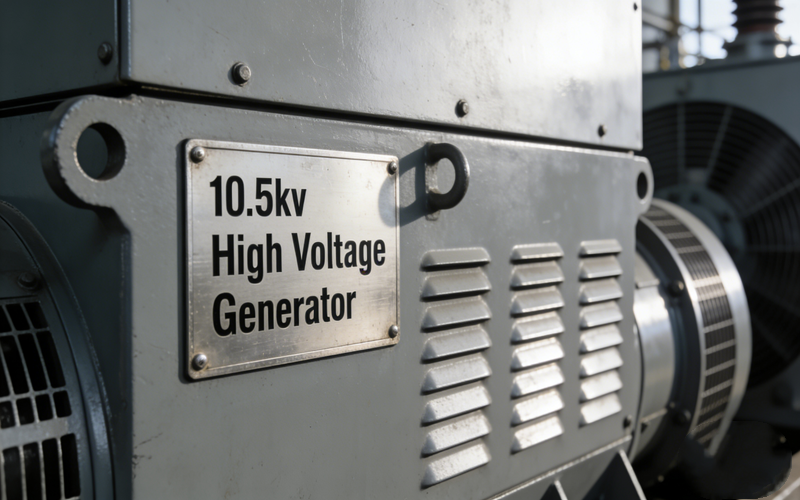

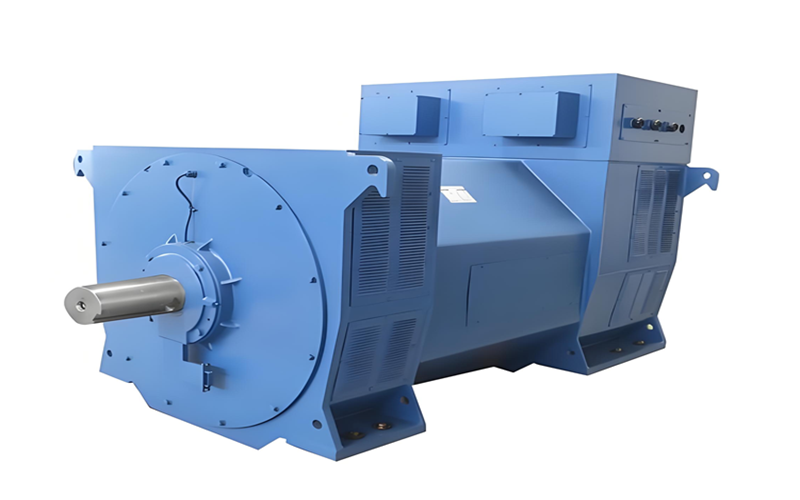

Many 1100kW+ projects require 6.3kV, 10.5kV, or 13.8kV.

Voltage Flexibility: “We offer low-voltage (400V-480V) and medium/high-voltage (6.3kV-11kV) configurations to reduce transmission losses in large-scale facilities.”

Case Study: 1100kw（1375kva） Generator for Indonesian Industrial Park

Project Aspect	Details
Client	Major Industrial Park, West Java, Indonesia
Challenge	Unstable grid causing costly production downtime. Needed reliable, high-voltage prime power.
Our Solution	A turnkey 1100kVa diesel genset with direct 11kV output and a custom paralleling switchgear.
Core Components	• Engine: Cummins QSK38-G6 for tropical climates. • Design: Weatherproof canopy with enhanced cooling.
Key Outcome	18+ months of reliable operation as primary power, achieving 99.8% availability and eliminating grid-related downtime.
Value Delivered	Simplified infrastructure, reduced energy loss, and full compliance with local regulations.

Why do we need a high-voltage generator? Please refer to the 【High Voltage Generator Set】 page
