Yuchai Diesel Generator Sets: Displacement is King
The Yuchai Displacement Advantage (vs. Industry Average)
While other brands chase higher RPMs and lighter materials, Yuchai has spent 70 years perfecting one thing: building engines with significantly larger displacement than the competition.
The result? Lower stress on components, better torque for starting massive motors, and longer life in continuous 24/7 operation.
| Series | Yuchai Displacement | Industry Average | Yuchai Advantage |
|---|---|---|---|
| YC6C (800-1200kW) | 39.6L (in-line 6) | 30-32L | +24% |
| YC12VC (1000-1500kW) | 39.6L (V-12) | 35-38L | +10-15% |
| YC16VC (2000-3000kW) | 79.2L (V-16) | 50-65L | +30-50% |
Built for the Job: Yuchai Power by Industrial Intensity
*From 24/7 mining operations to commercial standby—engineered for the exact demands of your industry.*
⛏️ Level 1: Mining & Extreme Duty (YC6C / YC16VC)
The Challenge: Mining means 24/7 operation, poor fuel quality, extreme dust, and massive motor starts.
Yuchai’s Solution:
79.2L displacement in YC16VC — soaks up load spikes like no other
Wet-type cylinder liners — field-replaceable, extends engine life
Heavy-duty block — cast iron construction with ribbed design for maximum rigidity
Fuel tolerant — handles lower-grade fuels without injector failure
Result: 25,000+ hours before major overhaul in continuous mining applications
🏭 Level 2: Industrial Prime Power (YC6T / YC12VC)
The Challenge: Factories, data centers, and industrial parks need reliable 24/7 power with fast transient response.
Yuchai’s Solution:
39.6L displacement in YC6C/YC12VC — 24% larger than competitors
Four-valve technology — better airflow, improved combustion efficiency
≤195 g/kWh fuel consumption — competitive with premium brands
G3 transient response — meets ISO 8528-5 for sudden load acceptance
Result: Stable power for critical manufacturing and data center operations
🏬 Level 3: Commercial & Standby (YC4A / YC6B / YC6MK)
The Challenge: Hospitals, malls, and commercial buildings need reliable backup with compact footprint.
Yuchai’s Solution:
Bosch HPCR (1600bar) — precise fuel delivery, cleaner emissions
10,000hr TBO — lower maintenance costs
-25°C cold start — reliable in cold climates without pre-heaters
Compact design — fits standard machine rooms
Result: Trusted backup for critical commercial facilities
Deep Dive: Yuchai Model Specifications by Series
🔹 4-Cylinder Series (Compact & Efficient）
| Model | Power Range | Displacement | Key Technical Features | Best Applications |
|---|---|---|---|---|
| YC4D | 30-50 kW | 4.2L | Bosch HPCR (1600bar), wet liners, G3 performance option | Telecom, retail, residential |
| YC4A | 80-100 kW | 4.8L | Alloy cast iron block, 10,000hr TBO, marine-grade options | Small factories, commercial |
🔹 6-Cylinder In-line Series (The Workhorses)
| Model | Power Range | Displacement | Key Technical Features | Best Applications |
|---|---|---|---|---|
| YC6B | 120-150 kW | 6.8L | P-type pump, 50% lower lube oil consumption | Construction, farms |
| YC6A | 150-188 kW | 7.2L | Four-valve, HPCR, turbo intercooled | Manufacturing, hospitals |
| YC6MK | 200-250 kW | 10.3L | Large displacement, high torque | Industrial plants |
| YC6MJ | 280-300 kW | 12.2L | High power density, transient response | Large factories |
| YC6T | 320-550 kW | 16.35-19.6L | 4-valve, ≤195g fuel consumption | Mining, prime power |
| YC6C | 800-1200 kW | 39.6L | Massive displacement, legendary torque | Heavy industrial, pumps |
🔹V-Series (High Power Density)
| Model | Power Range | Displacement | Configuration | Key Technical Features | Best Applications |
|---|---|---|---|---|---|
| YC12VC | 1000-1500 kW | 39.6L | V-12 | Twin banks of YC6C, compact | Data centers, hospitals |
| YC16VC | 2000-3000 kW | 79.2L | V-16 | World-class power density, 50°C capable | Hyperscale data centers, mining |
| YC20VTD | 2000kW (1800rpm) | — | V-20 | 1800rpm design, 4 turbochargers | High-speed prime power |
Find Your Duty Level: Yuchai Power Range Selector
Not sure which Yuchai series fits your operation? Select your typical load range below to see matching models.
🔹 30–150 kW | Light Industrial / Commercial
Typical Applications:
Telecom base stations
Small retail/offices
Farms & agriculture
Residential backup
Why Yuchai? Compact footprint, Bosch HPCR, 10,000hr TBO
🔹 150–300 kW | Medium Industrial / Manufacturing
Typical Applications:
Manufacturing plants
Regional hospitals
Commercial complexes
Water treatment
Why Yuchai? 10.3-12.2L displacement, high torque, electronic governor
🔹 300–600 kW | Heavy Industrial / Continuous Duty
Typical Applications:
Large industrial facilities
Mining support power
Data center backup
Prime power applications
Why Yuchai? 16.35-19.6L displacement, ≤195g fuel consumption, -25°C cold start
🔹 600–1200 kW | Heavy Industrial / Motor Starting
Typical Applications:
Large water pumps
Crushers & conveyors
Mid-size data centers
Island microgrids
Why Yuchai? 39.6L displacement — legendary torque for motor starting
🔹 1200–3000 kW | Mining / Hyperscale Data Centers
Typical Applications:
Large-scale mining
Hyperscale data centers
Utility power plants
Major industrial parks
Why Yuchai? 79.2L displacement — the 2600kW record-breaking choice
Beyond the Engine: Complete Engineering Solutions
Tailored to your site, load, and local requirements
| Customized Dimensions | We can do it | Value to you |
|---|---|---|
| Parallel Systems | N+1, 2N redundancy | Future-proof scalability |
| Alternator Choices | Stamford, Leroy-Somer, Marathon | Match performance to budget |
| Control Systems | Deep Sea, ComAp, SmartGen | From basic to fully automatic |
| High Voltage | 6.6kV, 10.5kV, 11kV direct | Eliminate step-up transformers |
| High Ambient | 50°C radiators | Full power in desert heat |
Technical Tools: Size Your Yuchai Genset with Confidence
Not sure which model fits your load? Use our free engineering tools to calculate power requirements and fuel costs—before you buy.
⚡ Power Sizing Tool
Not sure which yuchai model fits your load?
➡️ Enter your requirements → instant model recommendation
➡️ Get detailed specification sheet
🔗 [Launch Power Sizing Tool →]
⛽ Fuel Consumption Calculator
Estimate real-world operating cost.
➡️ Select yuchai model and load percentage
➡️ Hourly/daily/yearly fuel cost – calculated instantly
🔗 [Launch Fuel Calculator →]
View more brands for reference
Yuchai in the Field: Powering the World’s Toughest Jobs
From Indonesian nickel mines to Chinese hyperscale data centers—see how Yuchai’s massive displacement delivers 24/7 reliability in real-world conditions.
Project 1 – Indonesia | 2024
Model: 1200kW Yuchai YC12VC diesel generator set, 2 units
Application: Prime power for nickel mining operation
Highlights: 24/7 continuous operation in tropical climate, 8,000+ hours to date
Project 2 – Philippines | 2023
Model: 500kW Yuchai YC6T diesel generator set, 4 units
Application: Backup power for regional hospital network
Highlights: G3 transient response, critical load tested, <10s ATS transfer
Project 3 – UAE | 2024
Model: 2000kW Yuchai YC16VC diesel generator set, 1 unit
Application: Prime power for industrial park
Highlights: 50°C ambient radiator, sand protection, 5000+ operating hours
Project 4 – China | 2025 (Record-Breaking)
Model: 2600kW Yuchai containerized diesel generator set
Application: Hyperscale data center backup power
Highlights: Passed 240-hour continuous load test, 100% load block acceptance, typhoon survival validation
list of yuchai diesel generators
Need immediate delivery or a budget reference? These are our most popular Yuchai configurations — fully specified, transparently priced, and ready for fast shipment.
-

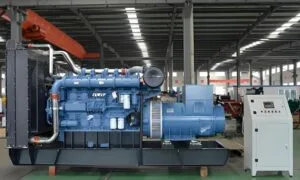

Yuchai 800kw diesel generator is equipped with Leleisenma 800kw generator
$98,600.00 -

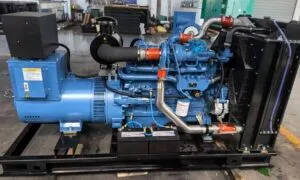

Yuchai 100kW Diesel Generator Set with Leroy-Somer Alternator
$13,960.00 -

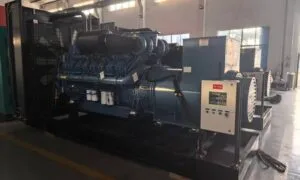

Introduction to the price and specifications of Yuchai 1200kw diesel generator
$156,600.00 -
Yuchai YC6T660L-D20 400kW Diesel Generator Set Price & Specifications | Stamford Alternator
$41,560.00
For projects requiring custom engine models, alternator brands, controllers, or special enclosures, please [contact us directly].
